HUALUO CABLE
Rubber Cables
Product Overview:
Rubber cables are soft and mobile cables composed of soft copper conductor (the fifth conductor), rubber insulation and rubber sheathed.
Main Application:

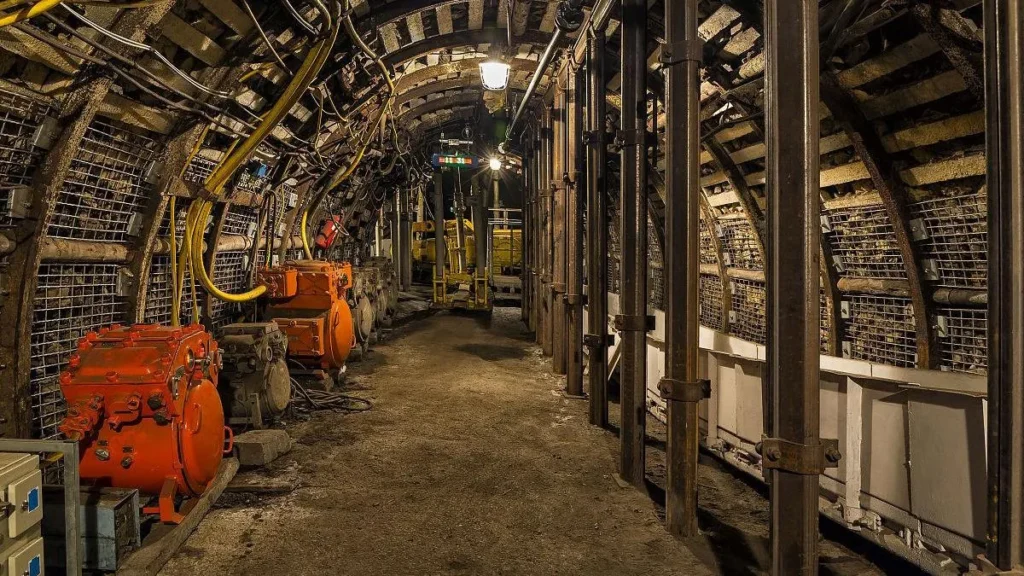

It is mainly used for outdoor large mobile electrical equipment and tool connections that need to withstand greater mechanical external forces. Most of them are used in mobile or harsh working conditions, such as ships, mines, mines, rolling stock and so on.
Technical Data
| Model | ERF | YC | YH | YGC |
| Insulation Material | EPDM | EPDM | EPDM | Silicone Rubber |
| Sheath Material | CPE | EPDM | EPDM | Silicone Rubber |
| Wire Core Material | Copper/Tinned Copper Wire | Copper | Bare Copper Wire | Copper |
| Voltage | 0.6/1KV 8.7/15KV | 0.45/0.75KV | This cable is specially used for welding, the rated voltage is not specified. | 0.45/0.75KV |
| Implementation standard | Q/HQ 17-2017 | JB/T8735-2016 | JB/T8735-2016 | |
| Maximum use temperature | 90 ºC | 60 ºC | 65 ºC | 180 ºC |
| Minimum use temperature | -20 ºC | – 15 ºC | -15 ºC | – 20 ºC |
| Installation (D is cable outer diameter) | 15D | 15D | 15D | 15D |
Application
